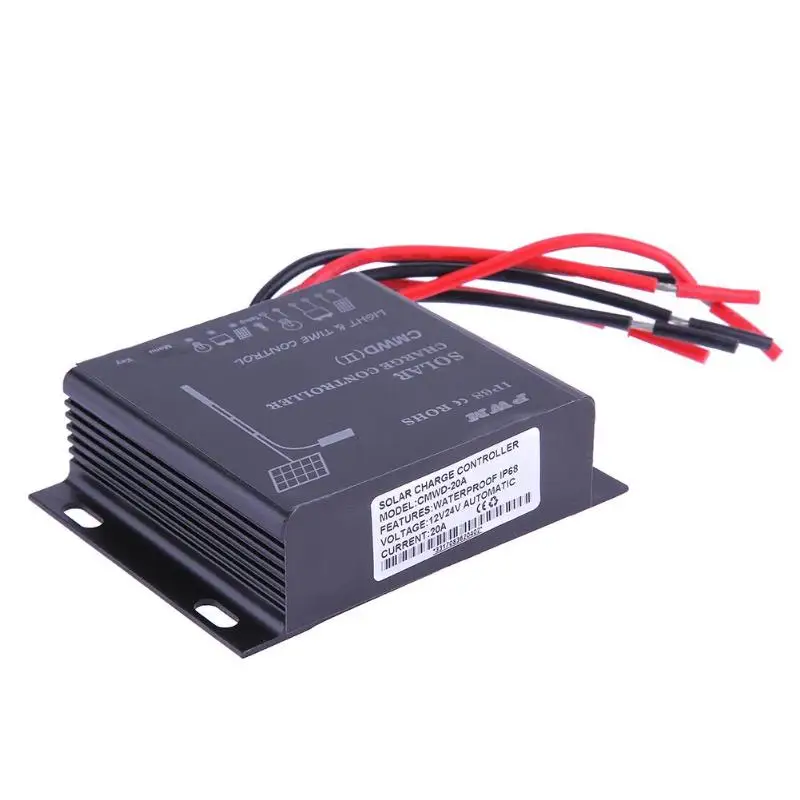

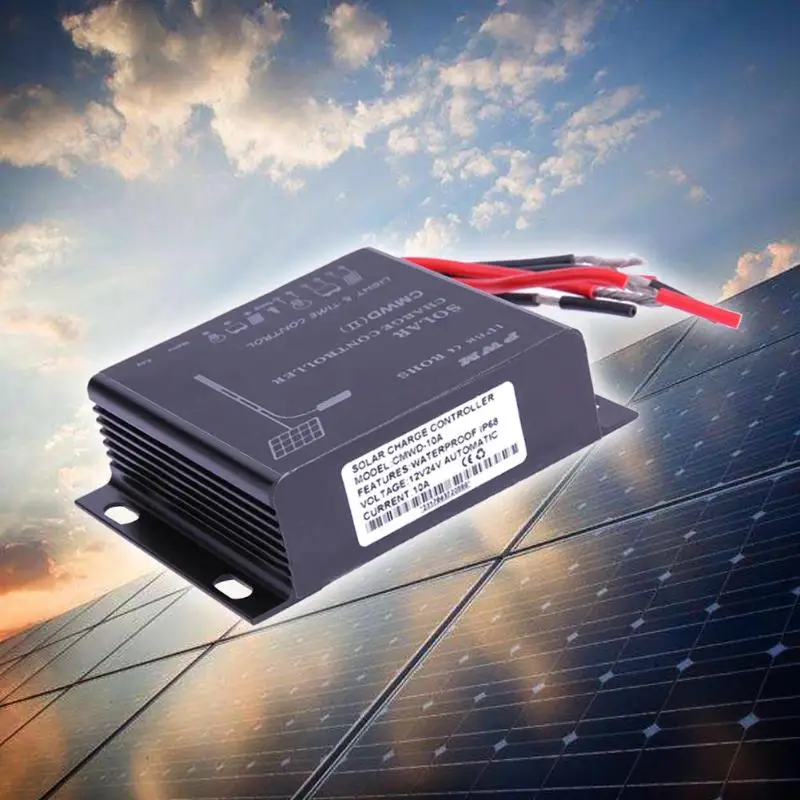

Waterproof IP68 LED 10A/20A PWM Solar Charge Controller 12-24V Auto Switch Timer Features: 1. 12V/24V Auto Adapt LED Display Solar Panel Charge Regulator Controller for Home PV System. 2. Build-in industrial micro controller, auto adapts to the Voltage of 12V/24V. 3. Auto Mode, turn on the lights when there is no sunlight, turn off the lights when there is sunlight. 4. Also with Manual Mode to turn on/off the lights depends on your needs. 5. Can preset the lighting hours from 1-15 hours. Debug mode for checking correctness of the system. 6. Smart Fully 3-stage PWM charge management. 7. With over-charge protection, over-discharge protection, overload protection, short circuit protection and reverse connection protection. 8. With TVS Lighting Protection. 9. Application: Home, Industrial, Commercial.
Specifications: Model: CMWD Series Rated Voltage: 12V/24V Rated Current: 10A, 20A (Optional) Discharge Current: 10A, 20A (Optional, equal to the rated current) Max. PV Voltage: 55V No Load Loss: = Temperature Compensation: -4.0mV/cell/°C USB Output: 5V/2A Max. Equal Charging Voltage: 14.4V/28.8V Boost Charging Voltage: 14.6V/29.2V Float Charging Voltage: 13.8V/27.6V Over-Discharging Voltage: 10.8V/21.6V Working Temperature: -35°C to +65°C Waterproof Grade: IP68 Working Modes: Auto Mode, Manual Mode, Timer Mode, Debug Mode Dimension: approx.104.4 x 80 x 28.3mm / 4.1″ x 3.1″ x 1.1″ Installation Dimension: approx.95.4 x 50mm/3.75 x 1.96”
Note: Please allow 1-3cm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
1 x Solar Charge Controller 1 x English User Manual
